Double cable multi flap grab

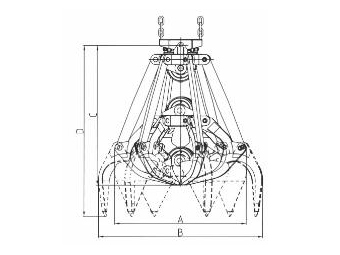

Double cable multi flap grab plan

Double cable multi flap grab

Application scope: Suitable for double rope cranes, port gantry cranes, bridge cranes, grabbing various uniformly sized bulk cargo with a specific gravity of 0.6-3.2t, usually grain, coal, cement, ore, mineral powder, etc.

+86-13585000194

Product Details

Application scope

Suitable for double rope cranes, port gantry cranes, bridge cranes, grabbing various uniformly sized bulk cargo with a specific gravity of 0.6-3.2t, usually for grain, coal, cement, ore, mineral powder, etc.

Technical parameter

Crane load		5t			10t			16t			25t	32t	40t
Material specific gravity (t/m3)		0.6-0.8	0.9-1.0	2.5-3.2	0.6-0.8	0.9-1.0	2.5-3.2	0.6-0.8	0.9-1.0	2.5-3.2	2.5-3.2	2.5-3.2	2.5-3.2
Bucket capacity (m3)		3	2.8	1.2	6.0	4.5	2	10	8	4	5.6	6.0	8
Self weight (kg)		3200	3200	2000	5700	5400	5000	8000	8000	6500	11000	14500	17000
Pulley diameter (mm)		Ø315	Ø315	Ø315	Ø450	Ø450	Ø450	Ø560	Ø560	Ø560	Ø630	Ø800	Ø900
Magnification ratio		3	3or4	4or5	3	3or4	4or5	3	3or4	4or5	4or5	4or5	4or5
Closed rope diameter		Ø16-18	Ø16-18	Ø16-8	Ø22-24	Ø22-24	Ø22-24	Ø28	Ø28	Ø28	Ø32	Ø36-40	Ø40-44
Main dimensions	A	2800	2600	3500	3500	2950	2700	3700	3500	3350	3650	3820	4200
	B	3500	3000	4700	4700	4100	3300	5000	4800	4300	4650	5000	5520
	C	2700	2600	3500	3500	3400	3300	3800	3700	3580	4000	4200	4650
	D	3200	3000	4700	4700	4200	3900	4700	4500	4360	4900	5200	5800
